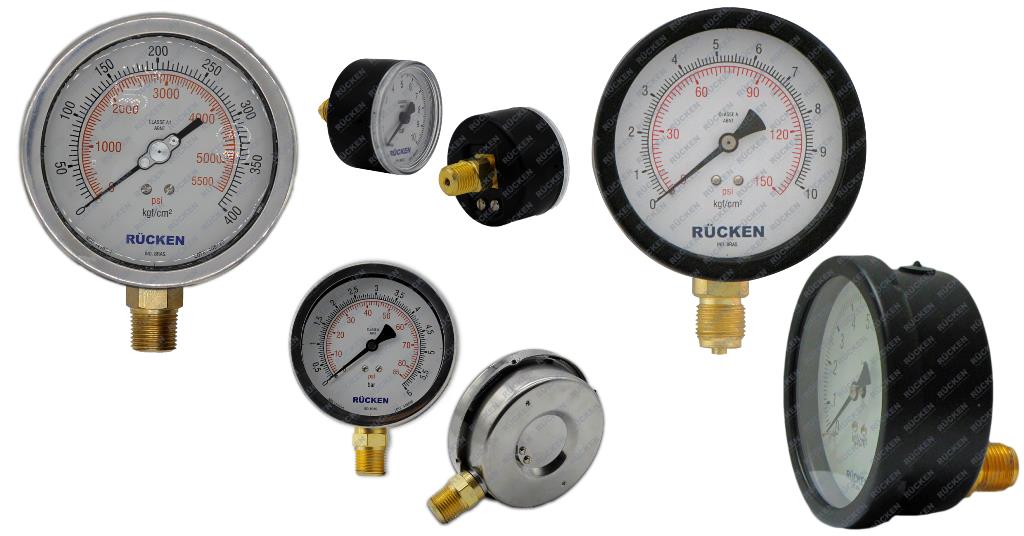

MANÔMETRO INDUSTRIAL – RMC
• Caixa em aço carbono ou latão forjado e internos em latão
• Faixa: desde 250mBAR à +1.000 BAR
• Montagem: Vertical ou Horizontal
• Rosca ao processo: ¼”, ½”, BSP ou NPT (outra especificar).
• Caixa: Plástico ABS (preto), Aço carbono (pintada em preto), Aço Forjado (dourada) ou Aço inoxidável AISI 304;
• Elemento sensor (bourdon) em ligas de cobre (opcionalmente em aço inox);
• Soquete e mecanismo em latão (opcionalmente em aço inox);
• Mostrador fundo branco com inscrições em preto e/ou vermelho (outros sob consulta);
• Solda estanho;
• Classe de precisão B ABNT ( ±3/2/3% FDE);
• Temperatura máxima para uso +60°C (temperaturas superiores sob consulta);
• Visor: Vidro ou Policarbonato.
DIMENSÕES (Ø 40mm):
DIMENSÕES (Ø 50, 60 e 80mm):
| Ø NOMINAL 50 | Ø NOMINAL 60 | Ø NOMINAL 80 | |
|---|---|---|---|
| A | 65,0 | 85,0 | 112,0 |
| B | 33,0 | 33,0 | 33,0 |
| C | 30,0 | 30,0 | 32,0 |
| D | 53,0 | 63,0 | 80,5 |
| F | 65,0 | 85,0 | 113,0 |
| G | 30,0 | 30,0 | 32,0 |
| H | 2,5 | 3,5 | 5,5 |
| K | 58,0 | 75,0 | 97,0 |
| L | 3,0 | 3,0 | 4,0 |
| O | 10,0 | 10,5 | 10,5 |
| ROSCA | 50mm | 60mm | 80mm | |
|---|---|---|---|---|
| J | 1/8”NPT | 45,0 | 54,0 | – |
| J | 1/4″BSP | 45,0 | 52,0 | 64,0 |
| J | 1/4″NPT | 46,0 | 52,0 | 64,0 |
| J | 1/2″BSP | – | – | 77,0 |
| J | 1/2″NPT | – | – | 78,0 |
| M | 1/8”NPT | 49,0 | 49,0 | 52,0 |
| M | 1/4″BSP | 51,0 | 51,0 | 54,0 |
| M | 1/4″NPT | 53,0 | 53,0 | 56,0 |
| M | 1/2″BSP | – | – | 64,0 |
| M | 1/2″NPT | – | – | 64,0 |
DIMENSÕES (Ø 100, 150 e 200mm):
| Ø NOMINAL 100 | Ø NOMINAL 150 | Ø NOMINAL 200 | |
|---|---|---|---|
| A | 132,0 | 196,0 | 240,0 |
| B | 5,0 | 5,0 | 5,0 |
| C | 116,0 | 178,0 | 221,0 |
| D | 101,0 | 161,0 | 202,0 |
| E | 19,0 | 18,0 | 18,0 |
| F | 48,0 | 50,0 | 50,0 |
| G | 45,0 | 48,0 | 48,0 |
| J | 135,0 | 195,0 | – |
| K | 7,0 | 5,0 | – |
| L | 45,0 | 47,0 | 49,0 |
| N | 32,5 | 32,5 | 32,5 |
| ROSCA | 100mm | 150mm | 200mm | |
|---|---|---|---|---|
| J | 1/4″ NPT | 80,0 | – | – |
| J | 1/4″ BSP | 80,0 | – | – |
| J | 1/2″ NPT | 83,0 | 116,0 | 137,0 |
| J | 1/2″ BSP | 83,0 | 116,0 | 137,0 |
| M | 1/4″ NPT | 74,0 | 76,0 | 78,0 |
| M | 1/4″ BSP | 77,0 | 79,0 | 81,0 |
| M | 1/2″ NPT | 81,0 | 83,0 | 85,0 |
| M | 1/2″ BSP | 80,0 | 82,0 | 84,0 |
Diâmetro Visor:
| Ø 40mm | 40 |
| Ø 52mm | 50 |
| Ø 63mm | 60 |
| Ø 100mm | 100 |
| Ø 114mm | 114 |
| Ø 150mm | 150 |
Glicerina:
| Instrumento com Glicerina | G |
Material:
| Caixa ABS (preto) e internos latão | ABSL |
| Caixa Aço Carbono (preto) e internos latão | ACL |
| Caixa Aço Forjado (dourado) e internos latão | AFL |
| Caixa Aço Inox AISI 304 e internos latão | AIL |
Montagem:
| Vertical | V |
| Horizontal | H |
| Vertical c/ Flange Traseira | VF |
| Horizontal c/ Flange Dianteira | HF |
Faixa de Pressão:
| 0 – 10 BAR | 10 BAR |
| 0 – 100 BAR | 100 BAR |
| 0 – 200 BAR | 200 BAR |
| Outra especificar | |
Rosca ao Processo:
| 1/8” NPT | 18-N |
| 1/4” BSP | 14-B |
| ¼” NPT | 14-N |
| ½” BSP | 12-B |
| ½” NPT | 12-N |
| ¾” BSP | 34-B |
| ¾” NPT | 34-N |
| Outra especificar | |
Especifique conforme exemplo: RMC – 100 – ACL – V – 10 BAR – 12-B.
